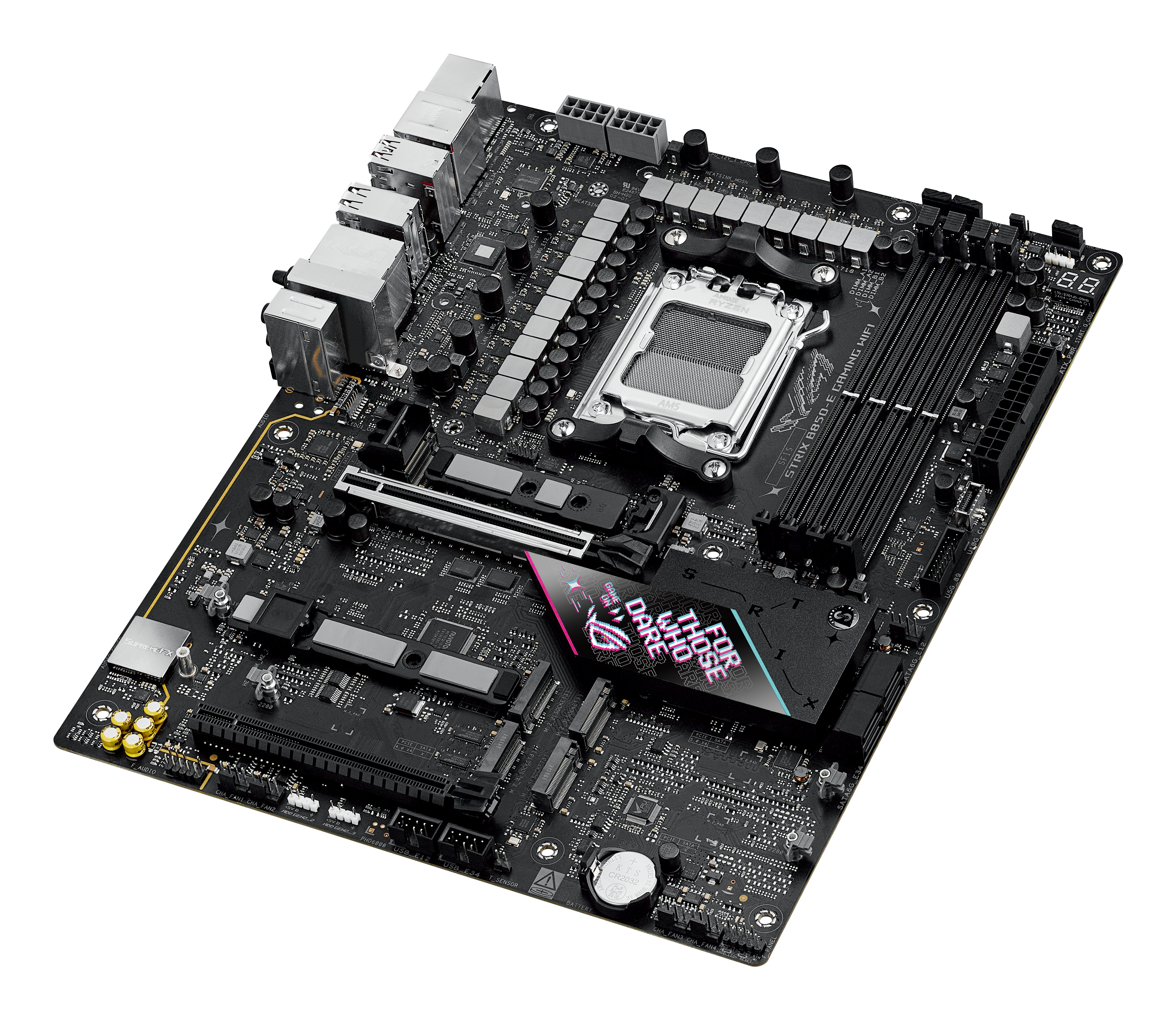

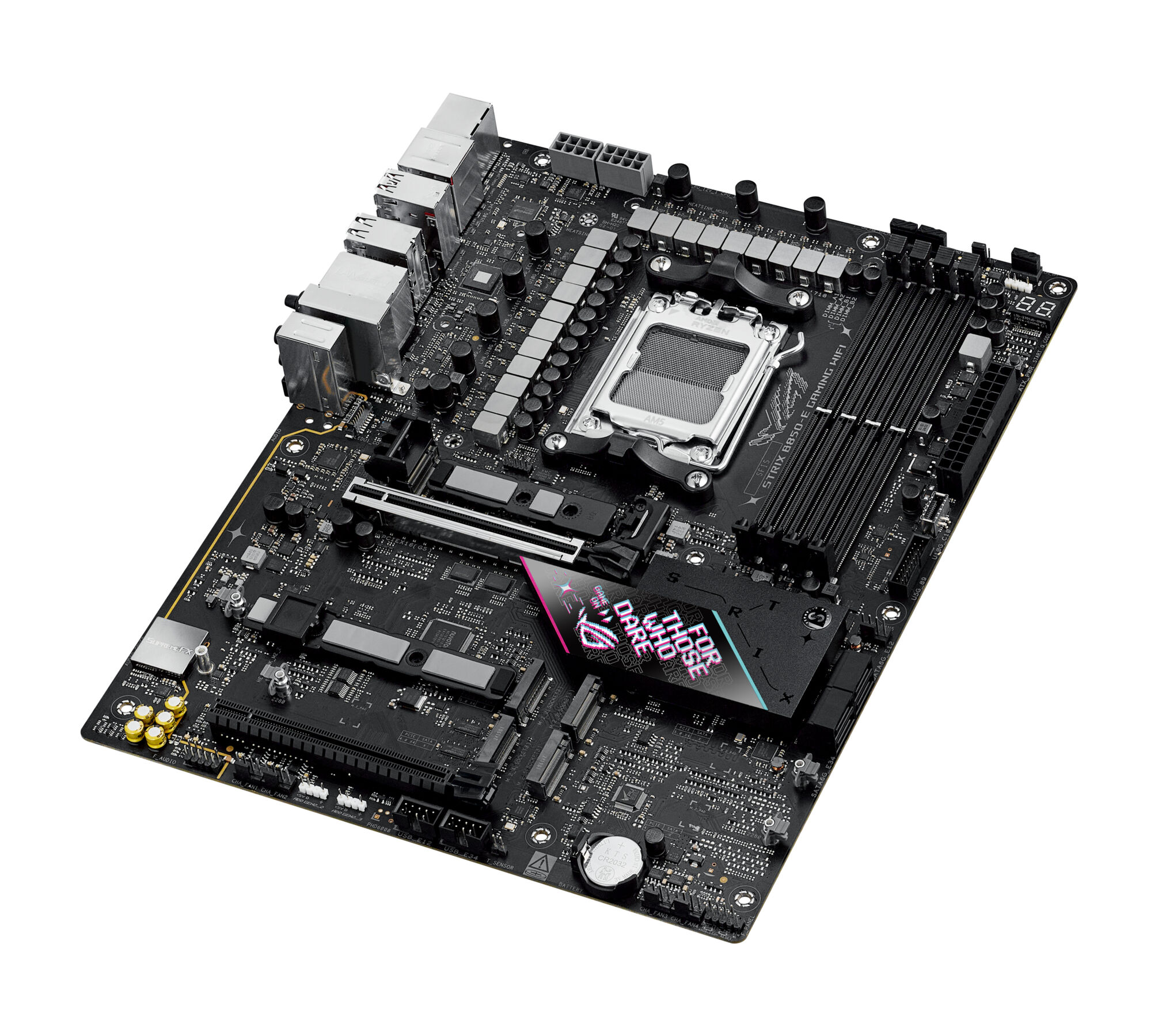

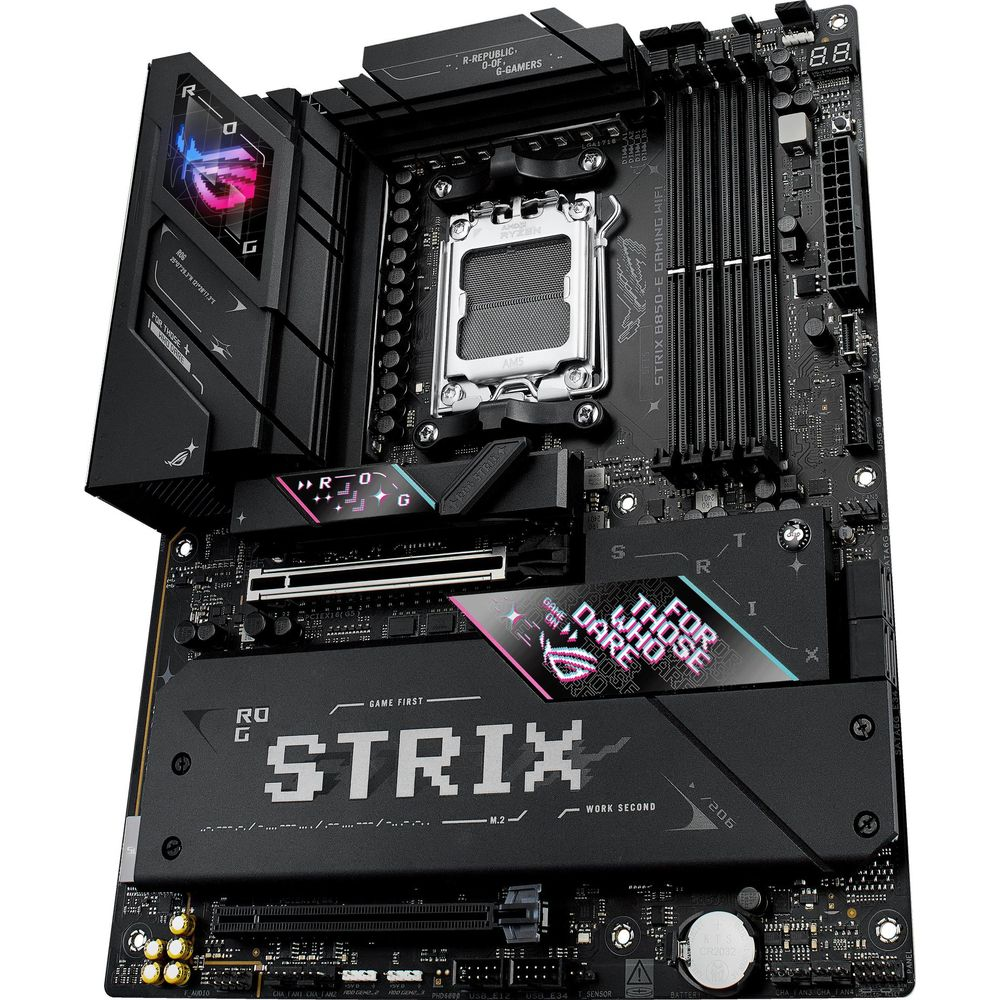

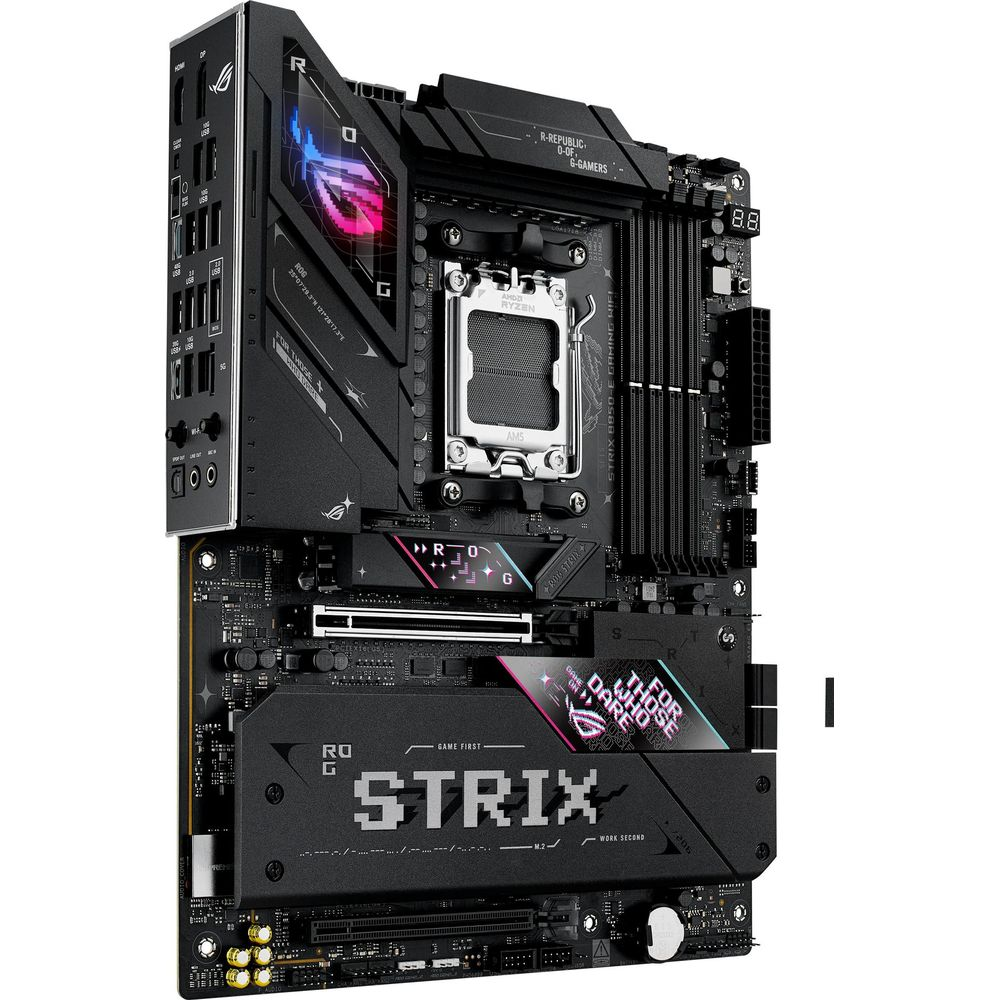

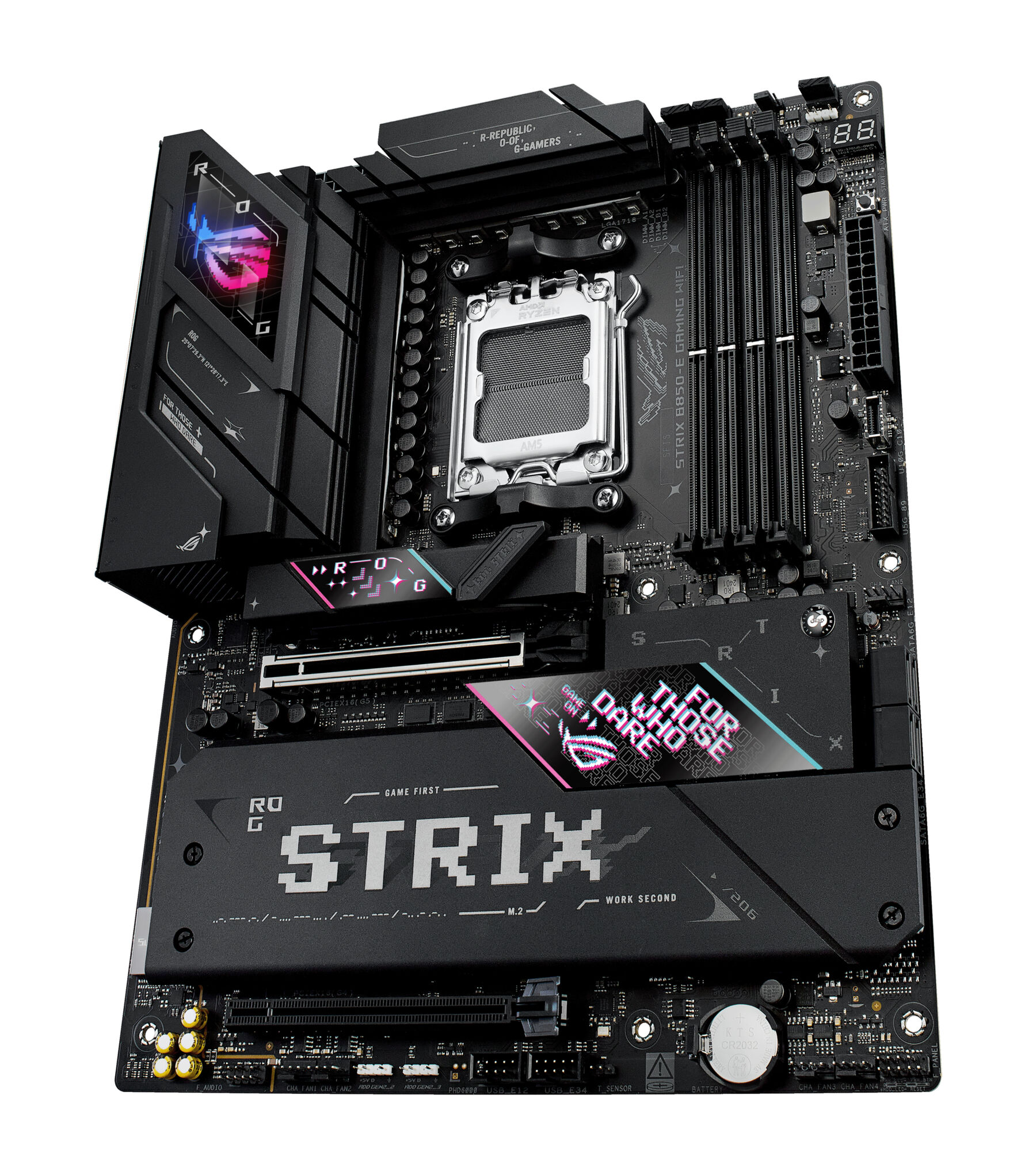

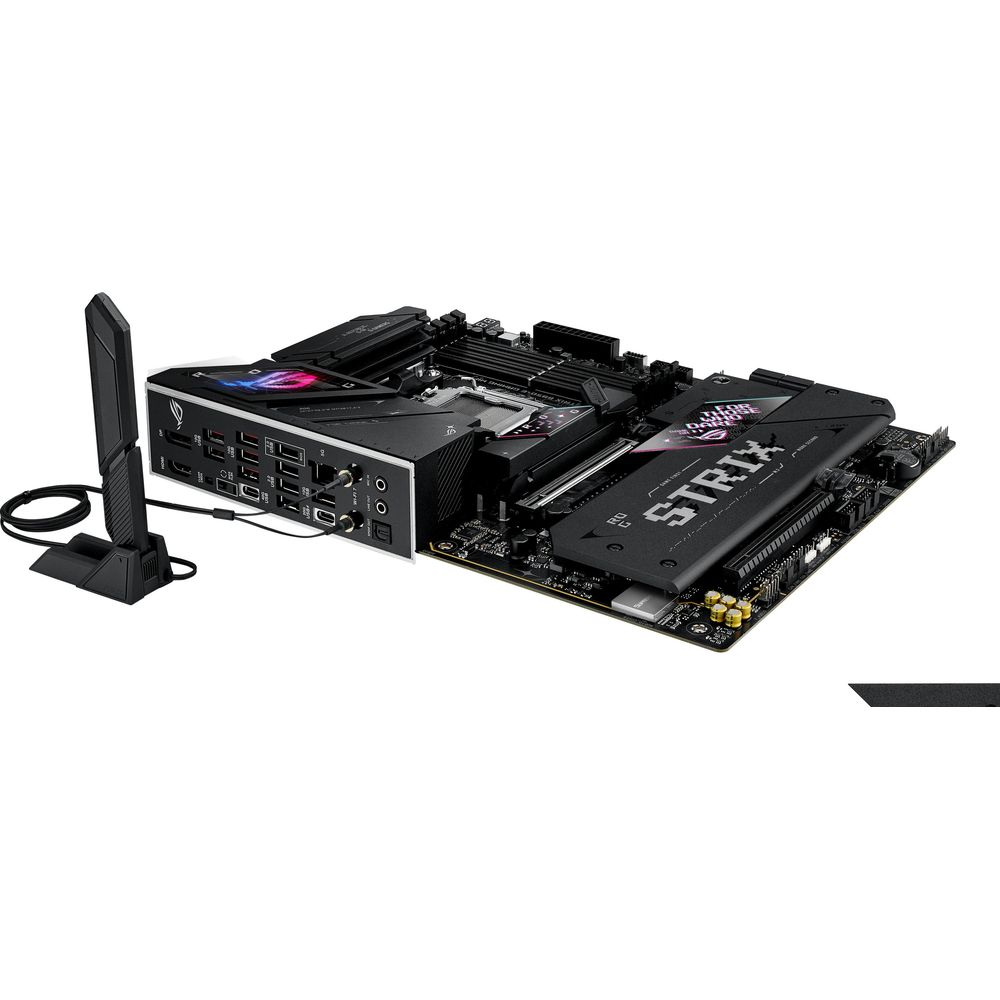

Płyta główna ASUS ROG STRIX B850-E GAMING WIFI Czarny
zawiera podatek VAT, darmowa dostawa
Sprzedaż i wysyłka przez Action S.A. PL
Dostępny online
Złóż zamówienie dzisiaj, a dostarczymy je w dniach 20.04.2026 - 22.04.2026
+ Darmowa dostawa
- Chipset płyty głównej: AMD B850
- Format płyty: ATX
- Gniazdo procesora: Socket AM5
- Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)
- Informacje dodatkowe: Operating System: Windows 11; Manageability: WOL by PME, PXE
- Maksymalna wielkość pamięci: 192.000 GB
- Standard pamięci: DDR5-8000+ (OC)
- Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
- Opis ogólny: Płyta Asus ROG STRIX B850-E GAMING WIFI

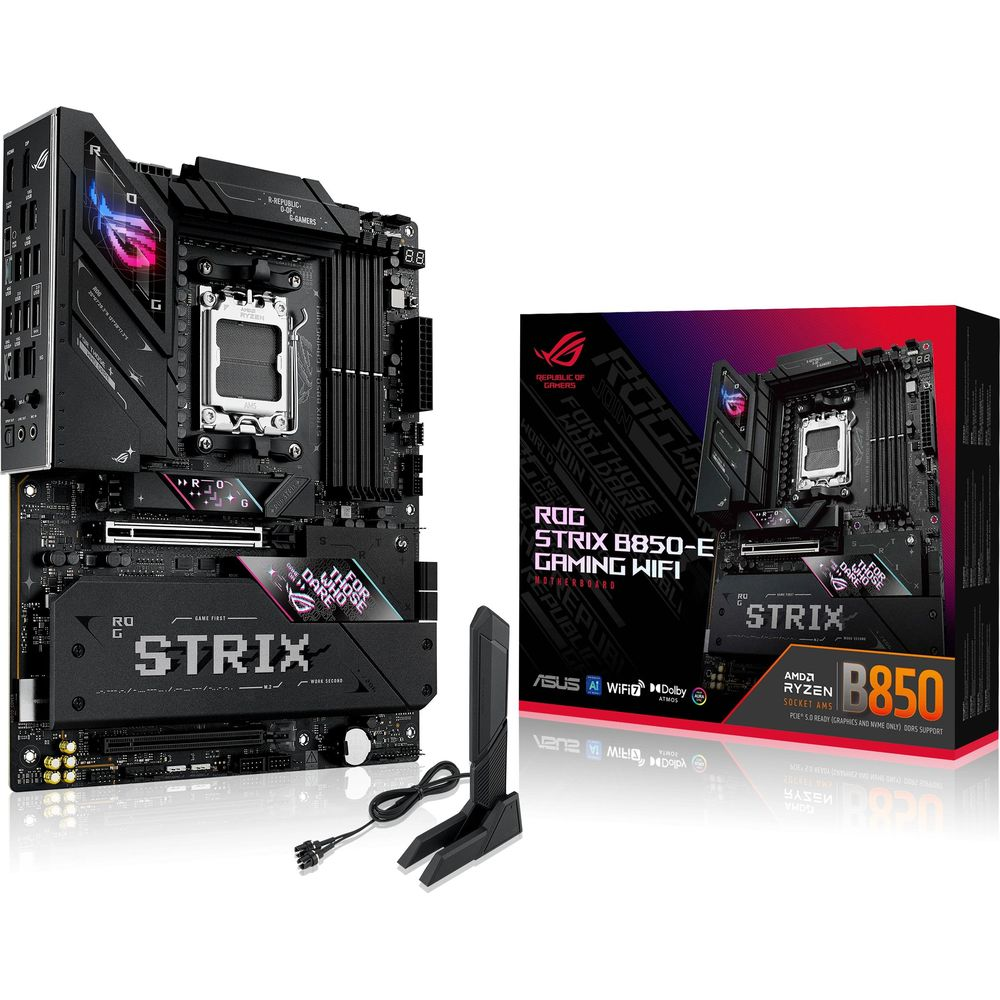

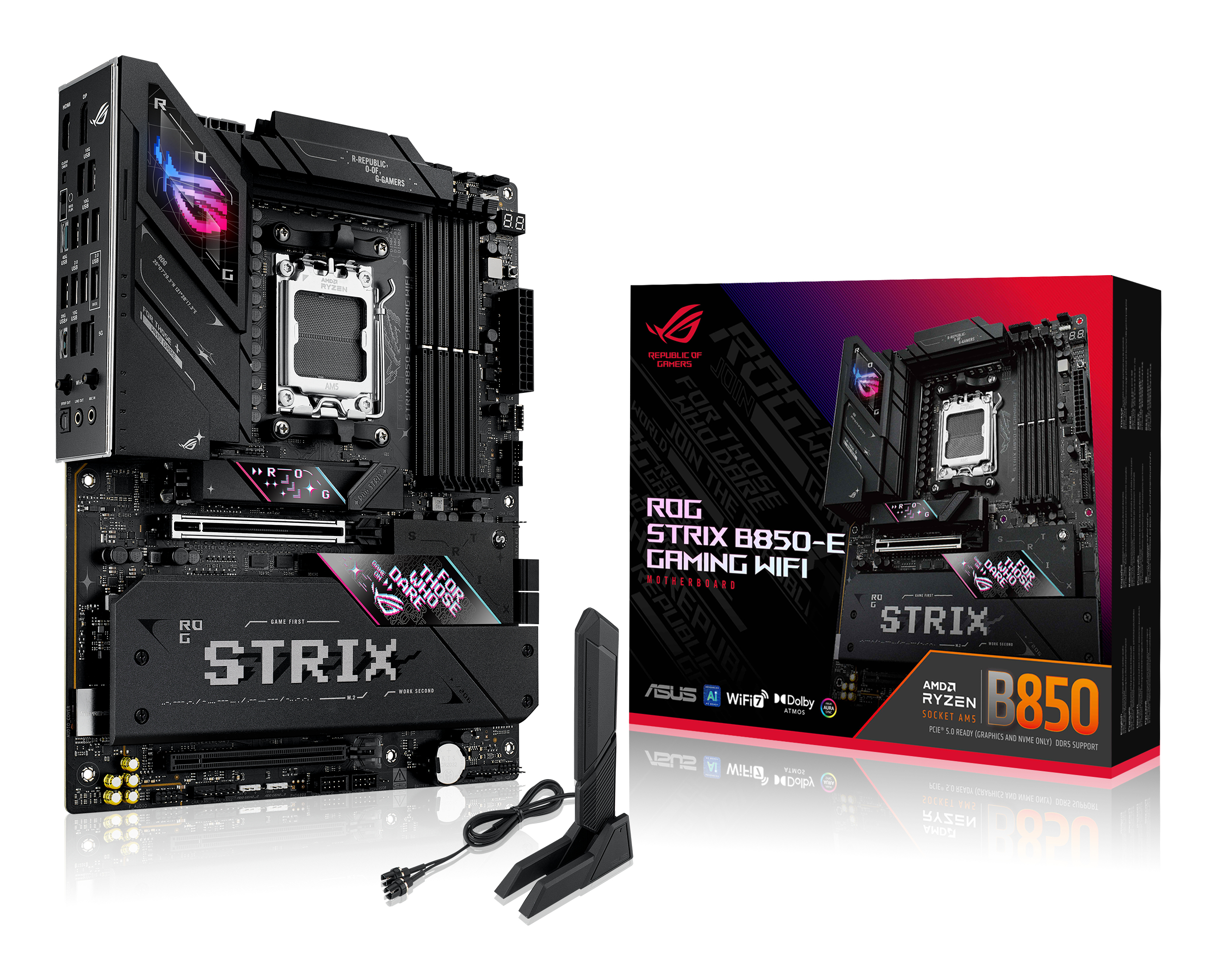

- Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables; 1 x Thermal pad for M.2 22110; 1 x ASUS WiFi Q-Antenna; 1 x Cable ties package; 1 x M.2 Q-Slide package; 1 x ROG key chain; 1 x ROG Strix stickers; 5 x M.2 rubbers; 1 x Quick start guide
- Złącza PCI Express x16: 3.000
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- Port LAN: 1x 5 Gigabit LAN Realtek®
- Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
- Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to ; AMD CPU specifications; Supports max. 8K@30Hz as specified in DisplayPort 1.4; Supports 4K@60Hz as specified in HDMI 2.1; VGA resolution support depends on processors' or graphic cards' resolution; Supports max. 4K@60Hz as specified in DisplayPort 1.4a
- Wymiary [S x W] (mm): 305 x 244
- Inne porty i gniazda: 4-pin CPU Fan header; 4-pin CPU OPT Fan header; 4-pin AIO Pump header; 5x 4-pin Chassis Fan header(s); 3x Addressable Gen 2 header; CPU Over Voltage jumper; Front Panel Audio header (AAFP); Power-on button(s); 10-1 pin System Panel header; Thermal Sensor header; BIOS FlashBack button ; Clear CMOS button(s)
- Port Bluetooth: Bluetooth V5.4
- Port PS/2: Brak
- Port szeregowy (COM): Brak
- Port równoległy (LPT): Brak
- Uwagi do złącz PCI: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:; - 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes); AMD Ryzen™ 8000 Series Desktop Processors:; - 1 x PCIe 5.0 x16 slot with Q-Rlease Slim(supports PCIe 4.0 x8 or x4 mode); AMD B850 Chipset:; - 1 x PCIe 4.0 x16 slot (supports x4 mode); When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8; M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is ; operating, M.2_4 will be disabled.
- Gniazda karty graficznej: HDMI; USB4 Type-C; DisplayPort
- Gniazda karty dźwiękowej: 2x Audio Jack; Wewnętrzne gniazdo audio przedniego panelu; Wyjście optyczne S/PDIF
- Zintegrowana karta dźwiękowa: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 5x M.2
- Tryb pracy pamięci RAM: Dual Channel
- Uwagi do pamięci RAM: Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP); Supported memory types, data rate (speed), and number of DRAM modules vary ; depending on the CPU and memory configuration, for more information ; please refer to CPU/Memory Support list under the Support tab of product ; information site or visit https://www.asus.com/support/download-center/
- Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs; Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking; High quality 120 dB SNR stereo playback output and 110 dB SNR recording ; input; Supports up to 32-Bit/384 kHz playback on front panel; SupremeFX Shielding Technology; Savitech SV3H712 AMP; Gold-plated audio jacks; Rear optical S/PDIF out port; Premium audio capacitors; Audio cover; A chassis with an HD audio module in the front panel is required to support; 7.1 Surround Sound audio output. ; The LINE OUT port on the rear panel does not support spatial audio. If you ; wish to use spatial audio, make sure to connect your audio output device ; to the audio jack on the front panel of your chassis or use a USB ; interface audio device.
- Uwagi do procesora: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Uwagi do karty sieciowej: ASUS LANGuard
- Uwagi do kontrolera SATA: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:; - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); - M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors:; - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); - M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports); - M.2_3 slot (Key M), type 2280 (Not supports); AMD B850 Chipset:; - M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); - M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); - 4 x SATA 6Gb/s ports; When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8.; when SATA6G_1 or SATA6G_2 run; M.2_2 and M.2_3 slot will be disabled while using the ; AMD Ryzen™ 8000 Series Desktop Processors.; M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is ; operating, M.2_4 will be disabled.; AMD RAIDXpert2 Technology; - Ryzen™ 9000 Series Processors: RAID 0/1/5/10; - Ryzen™ 8000 Series Processors: RAID 0/1; - Ryzen™ 7000 Series Processors: RAID 0/1/10
- Maksymalna ilość portów USB 2.0: 8.000
- Maksymalna ilość portów USB 3.x: 10.000
- Porty USB na panelu tylnym: 4x USB 2.0 + 6x USB 3.1 + 1x USB 3.2 Type-C + 1x USB 4 Type-C
- Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
- Maksymalna ilość portów USB 4.0: 1.000
- Cechy: B850-E
- Ilość złącz pamięci DDR5: 4.000
- Baza SCIP: Nie
- Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band; Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate; Bluetooth® v5.4; Wi-Fi features may vary depending on the operating system; For Windows 11, Wi-Fi 7 will require24H2 or later version for full ; functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. ; For Windows 10, please note that no driver is available, refer to the ; Wi-Fi chipset vendor's website for details; Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between ; countries; The Bluetooth® version may vary, please refer to the Wi-Fi module ; manufacturer's website for the latest specifications
- Zawiera baterię / akumulator: TAK
- KWiU: 26.20.40.0
- Klasa Logistyczna: 2
- Symbol producenta: ROG STRIX B850-E GAMING WIFI
- Paczkomat możliwy: TAK
- Marka: Asus
- GPSR - Certyfikaty i deklaracje: CE
- GPSR - ID producenta: 42489
- GPSR - Producent nazwa: ASUSTeK Computer Inc.
- GPSR - Producent ulica: 1F.,No.15,Llde Rd.,Beitou Dist
- GPSR - Producent kod pocztowy: 112
- GPSR - Producent miejscowość: Taipei City
- GPSR - Producent kraj: TW
- GPSR - Producent telefon:
- GPSR - Producent email: www.asus.com/support/product/contactus/services/questionform/
- GPSR - ID podmiotu odpowiedzialnego: 40270
- GPSR - Podmiot odpowiedzialny nazwa: ASUS Computer GmbH
- GPSR - Podmiot odpowiedzialny ulica: Harkortstr. 21-23
- GPSR - Podmiot odpowiedzialny kod pocztowy: 40880
- GPSR - Podmiot odpowiedzialny miejscowość: Ratingen
- GPSR - Podmiot odpowiedzialny kraj: DE
- GPSR - Podmiot odpowiedzialny telefon:
- GPSR - Podmiot odpowiedzialny email: www.asus.com/support/product/contactus/services/questionform/
Cechy | |
|---|---|
Typ produktu | Płyta główna |
Rodzaj płyty głównej | ATX |
Gniazdo procesora | Sockel AM5 |
Chipset | AMD B850 |
Połączenia (wewnętrzne) | Gniazdo zasilania ATX (24-pin),Gniazdo wentylatora procesora,Złącze zasilacza EPS (8-pin),Złącze audio na przednim panelu,Złącze panelu przedniego,Ilość gniazd w podstawie wentylatora:5,Liczba złączy wentylatora CPU:2,Liczba złączy zasilania EPS (8-pin):2,Liczba złączy RGB LED:3,Ilość złączy SATA III:4,Liczba nagłówków czujnika temperatury:1,Liczba złączy pompy wodnej:1,LED RGB,Ilość gniazd USB 2.0:2,Łącza USB 3.2 Gen 1 (3.1 Gen 1):1,Łącza USB 3.2 Gen 2 (3.1 Gen 2):1 |
Połączenia (zewnętrzne) | Wejście cyfrowe audio:1,Ilość DisplayPort:1,Ilość portów DVI-D:0,Ilość portów Ethernet LAN (RJ-45):1,Ilość portów HDMI:1,Wyjścia słuchawkowe:1,Wejście liniowe,Port wyjścia S/PDIF,Liczba portów USB 2.0:4,Ilość portów USB 3.2 Gen 1 (3.1 Gen 1) Typu-A:0,Ilość portów USB 3.2 Gen 1 (3.1 Gen 1) Typu-C:0,Łącza USB 3.2 Gen 2 (3.1 Gen 2):1,Ilość portów USB 3.2 Gen 2 (3.1 Gen 2) Typu-A:6,Ilość portów USB 3.2 Gen 2 (3.1 Gen 2) Typu-C:0,Ilość portów USB 3.2 Gen 2x2 typu C:1,Ilość portów USB4 Gen 3x2:1 |
Maks. pamięć obsługiwana | 192 GB |
Obsługiwany typ pamięci | DDR5 |
Materiał | - |
Liczba gniazd pamięci RAM | 4 |
Producent płyty głównej | ASUS |
Obsługiwane modele procesorów | AMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series |
Sloty | 1x PCI Express x16 (Gen 4.x),1x PCI Express x16 (Gen 5.x),5x Number of M.2 (M) |
Dźwięk | Realtek ALC4080 |
Rodzaj systemu BIOS | UEFI AMI |
Sieć | LAN,5 Gigabit Ethernet,Wi-Fi 7 (802.11be),Bluetooth [5.4, de-DE:5.4;en-GB:5.4;nl-NL:5.4;it-IT:5.4;es-ES:5.4;de-AT:5.4;fr-BE:5.4;nl-BE:5.4;pl-PL:5.4;ll:5.4;ll-LL:5.4] |
Kompatybilny system operacyjny | Windows |
Dodatkowe informacje | Obsługa przetwarzania równoległego:Nieobsługiwany |
Szerokość | 305 mm |
Wysokość | 88 mm |
Głębokość | 244 mm |
Kolor | Czarny |
W opakowaniu znajdziesz | Instrukcja szybkiej instalacji, Antena |
Bluetooth | tak |
Wi-Fi | tak |
Wersja DisplayPort | 1.4 |
Wersja HDMI | 2.1 |
